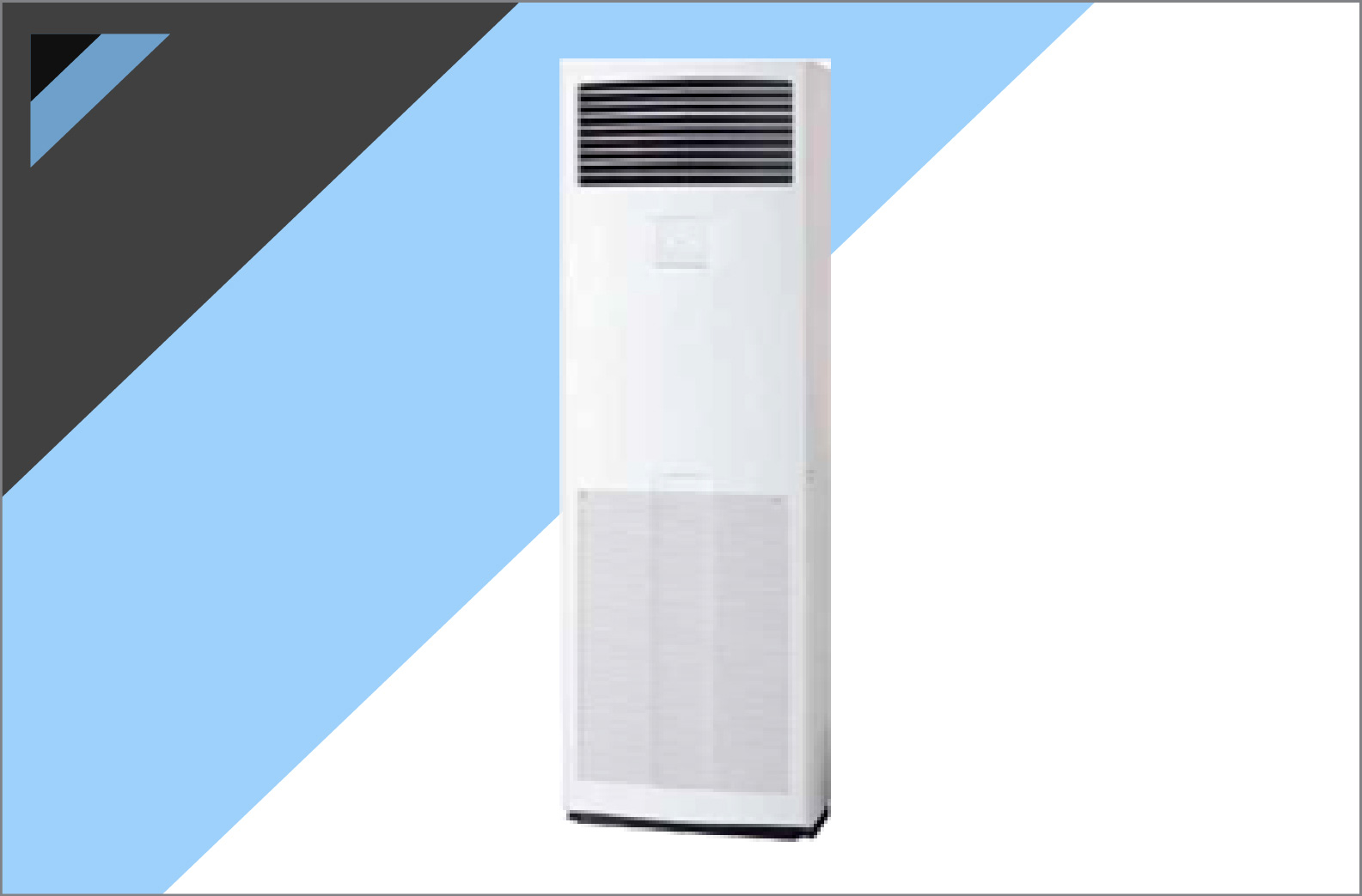

Experience ultimate comfort through new and advanced airflow control in our FVQ Series of floor standing air conditioners! It features long-lasting filter which can perform for almost 1 year without seeking maintenance. Ensure more security with its safety lock function that keeps grille secured even in case of impact.
| Model name | Indoor unit | FVQ125CVEB | FVQ140CVEB | FVQ100CVEB | FVQ125CVEB | FVQ140CVEB | |
| Outdoor unit | RZQ125KCV4A | RZQ140KCV4A | RZQ100HAY4A | RZQ125HAY4A | RZQ140HAY4A | ||
| Power supply | 1 Phase, 220-240 V, 50 Hz | 1 Phase, 220-240 V, 50 Hz | 3 Phase, 415 V, 50 Hz | 3 Phase, 415 V, 50 Hz | 3 Phase, 415 V, 50 Hz | ||
| Cooling capacity -Rated (min ~max) | kW | 12.5(5.7-14.0) | 13.5 (6.2-15.4) | 10.0 (5.0-11.2) | 12.5(5.7-14.0) | 13.5 (6.2-15.4) | |
| Heating capacity -Rated (min ~max) | kW | 14.0 (6.0-16.2) | 16.0 (6.2-18.0) | 11.2 (5.1-12.8) | 14.0 (6.0-16.2) | 16.0 (6.2-18.0) | |
| Power consumption | Cooling-Rated | kW | 4.390 | 5.400 | 3.280 | 4.390 | 5.400 |
| Power consumption | Heating-Rated | kW | 4.260 | 5.280 | 3.670 | 4.260 | 5.280 |
| Annual Power Consumption | kWh | NA | NA | NA | NA | NA | |
| ISEER / Stars | Wh/Wh | NA | NA | NA | NA | NA | |
| Indoor unit | |||||||
|---|---|---|---|---|---|---|---|
| Colour | Fresh White | Fresh White | Fresh White | Fresh White | Fresh White | ||
| Airflow rate (H/M/L) | m3/min | 28/26/24 | 30/28/26 | 28/25/22 | 28/26/24 | 30/28/26 | |
| cfm | 988/918/847 | 1059/988/918 | 988/883/777 | 988/918/847 | 1059/988/918 | ||
| Sound level (H/M/L) | dB(A) | 51/48/46 | 53/51/48 | 50/47/44 | 51/48/46 | 53/51/48 | |
| Dimensions (HXWXD) | Unit | mm | 1850x600x350 | 1850x600x350 | 1850x600x350 | 1850x600x350 | 1850x600x350 |
| Panel | mm | NA | NA | NA | NA | NA | |
| Machine weight | Unit | kg | 47 | 47 | 47 | 47 | 47 |
| Panel | kg | NA | NA | NA | NA | NA | |
| Certified operation range | °CWB | 15 to 27 | 15 to 27 | 15 to 27 | 15 to 27 | 15 to 27 | |
| Outdoor unit | |||||||
| Colour | Ivory White | Ivory White | Ivory White | Ivory White | Ivory White | ||
| Compressor | Type | Hermetically Sealed Scroll Type | Hermetically Sealed Scroll Type | Hermetically Sealed Scroll Type | Hermetically Sealed Scroll Type | Hermetically Sealed Scroll Type | |
| Motor output | kW | 2.4 | 3.1 | 1.7 | 2.2 | 2.9 | |
| Refrigerant charge (R-410A) | kg | 3.7(Charged For 30m) | 3.7(Charged For 30m) | 4.3(Charged For 30m) | 4.3(Charged For 30m) | 4.3(Charged For 30m) | |
| Sound level | Cooling/Heating | dB(A) | 50/52 | 50/52 | 49/51 | 50/52 | 50/52 |
| Dimensions (HXWXD) | mm | 1170x900x320 | 1170x900x320 | 1345x900x320 | 1345x900x320 | 1345x900x320 | |
| Machine weight | kg | 98 | 98 | 108 | 108 | 108 | |
| Certified operation range | Cooling | °CDB | -5 to 46 | -5 to 46 | -5 to 46 | -5 to 46 | -5 to 46 |
| Certified operation range | Heating | °CWB | -15 to 15.5 | -15 to 15.5 | -15 to 15.5 | -15 to 15.5 | -15 to 15.5 |
| Piping connections | Liquid (Flare) | mm | Ø9.5 | Ø9.5 | Ø9.5 | Ø9.5 | Ø9.5 |
| Gas (Flare) | mm | Ø15.9 | Ø15.9 | Ø15.9 | Ø15.9 | Ø15.9 | |
| Drain | mm | VP20(I.D Ø20, O.D Ø26) | VP20(I.D Ø20, O.D Ø26) | VP20(I.D Ø20, O.D Ø26) | VP20(I.D Ø20, O.D Ø26) | VP20(I.D Ø20, O.D Ø26) | |
| Max. interunit piping length | m | 75 (Equivalent length 90m) | 75 (Equivalent length 90m) | 75 (Equivalent length 90m) | 75 (Equivalent length 90m) | 75 (Equivalent length 90m) | |
| Max. installation level difference | m | 30 | 30 | 30 | 30 | 30 | |
