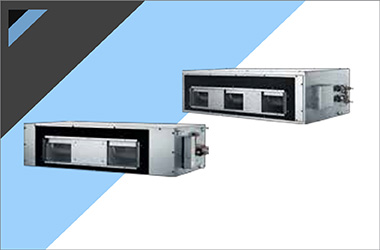

Make smart use of available space with Daikin’s FBQ Series. These next-generation cooling units are meant to uplift the comfort level by delivering amazing performance. Its thin, lightweight indoor unit makes delivery and installation quite easy even in low-height spaces.
| Model name | 71 | 100 | 125 | 140 | 100 | 125 | 140 | |||
| Indoor unit | FBQ71DV1 | FBQ100DV1 | FBQ125DV1 | FBQ140DV1 | FBQ100DV1 | FBQ125DV1 | FBQ140DV1 | |||
| Outdoor unit | RZQ71KCV4A | RZQ100KCV4A | RZQ125KCV4A | RZQ140KCV4A | RZQ100HAY4A | RZQ125HAY4A | RZQ140HAY4A | |||
| Power supply | Indoor unit : 1 Phase, 220-240 V, 50 Hz Outdoor unit : 1 Phase, 240 V, 50 Hz |
Indoor unit : 1 Phase, 220-240 V, 50 Hz Outdoor unit : 3 Phase, 415 V, 50 Hz |
||||||||
| Cooling capacity1 Rated (Min. - Max.) |
kW | 7.1 (3.2-8.0) |
10.0 (5.0-11.2) |
12.5 (5.7-14.0) |
13.1 (6.2-15.4) |
10.0 (5.0-11.2) |
12.5 (5.7-14.0) |
13.1 (6.2-15.4) |
||
| Heating capacity2 Rated (Min. - Max.) |
kW | 8.0 (3.5-9.0) |
11.2 (5.1-12.8) |
14.0 (6.0-16.2) |
16.0 (6.2-18.0) |
11.2 (5.1-12.8) |
14.0 (6.0-16.2) |
16.0 (6.2-18.0) |
||
| Power consumption | Cooling1 | kW | 2.22 | 3.17 | 3.97 | 4.16 | 3.17 | 3.97 | 4.16 | |
| Heating2 | kW | 2.43 | 3.15 | 3.95 | 4.68 | 3.15 | 3.15 | 4.68 | ||
| COP | Cooling | W/W | 3.2 | 3.15 | ||||||
| Heating | W/W | 3.29 | 3.56 | 3.54 | 3.42 | 3.56 | 3.54 | 3.42 | ||
| Indoor unit | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Colour | ||||||||||
| Fan | Airflow rate (H/L) |
m3/min | 18/15 | 32/23 | 39/28 | 32/23 | 39/28 | |||
| cfm | 635/530 | 1,130/812 | 1,377/988 | 1,130/812 | 1,377/988 | |||||
| External static pressure3 (Middle-High) |
Pa | 50-200 | ||||||||
| Sound level (H/L)4 | dB(A) | 37/32 | 38/33 | 40/36 | 40/36 | 38/33 | 40/36 | 40/36 | ||
| Dimensions (HxWxD) | mm | 300X 1,000X 700 | 300X 1,400X 700 | |||||||
| Machine weight | kg | 36 | 46 | |||||||
| Certified Operation range | Cooling | °CWB | 14 to 25 | |||||||
| Operation range Heating | Heating | °CDB | 15 to 27 | |||||||
| Outdoor unit | ||||||||||
| Colour | Ivory White | |||||||||
| Compressor | Type | Hermetically sealed swing type | Hermetically sealed scroll type | |||||||
| Motor output | kW | 1.7 | 1.9 | 2.4 | 2.9 | 1.9 | 2.4 | 2.9 | ||
| Refrigerant charge (R-410A) | kg | 2.75 (Charged for 30 m) |
3.7 (Charged for 30 m) |
4.3 (Charged for 30 m) |
||||||
| Sound level | Cooling/ Heating4 |
dB(A) | 48/50 | 49/51 | 50/52 | 49/51 | 50/52 | |||
| Night quiet mode |
dB(A) | 44 | 45 | 46 | 45 | 46 | ||||
| Dimensions (HXWXD) | mm | 770X 900X 320 | 1,170X 900X 320 | 1,345X 900X 320 | ||||||
| Machine weight | kg | 68 | 98 | 108 | ||||||
| Certified Operation range | Cooling | °CDB | -5 to 46 | |||||||
| Heating | °CWB | -15 to 15.5 | ||||||||
| Piping connections | Liquid (Flare) | mm | Ø9.5 | |||||||
| Gas (Flare) | mm | Ø15.9 | ||||||||
| Drain | Indoor unit | mm | I.DØ25X O.DØ32 | |||||||
| Outdoor unit | mm | Ø26.0 (Hole) | ||||||||
| Max. interunit piping length | m | 50 (Equivalent length 70) |
75 (Equivalent length 90) | |||||||
| Max. installation level difference | m | 30 | ||||||||
| Heat insulation | Both liquid and gas piping | |||||||||
